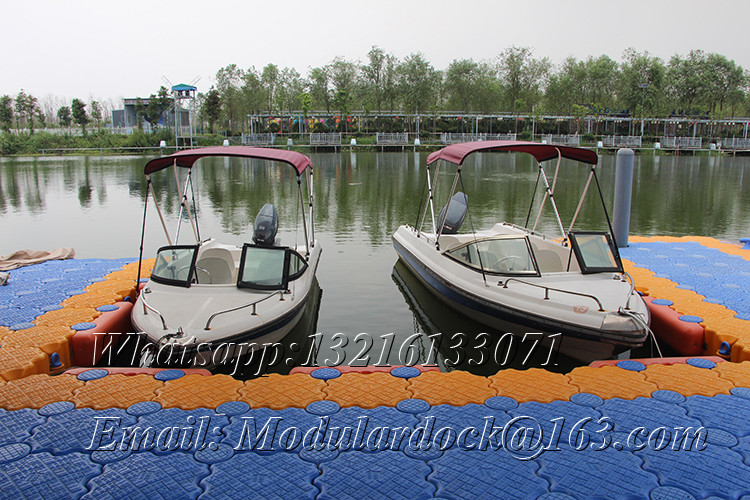

Floating Dock , Floating Jet Ski Dock , Jet Ski Lift For Sale

Floating boat docks Specifications:
Dimension: 500mm×500mm×400mm(L*W*H)
Weight: 7.0Kgs/ pc ± 0.3Kgs/ pc
Floating Capacity: 350Kgs/ M2
Raw Material: HDPE with UV
Preference Temperature: -60°C/+80°C Color available: orange, blue, gray, black

Load Capacity:

each one square meter is made up of four pontoons, top load is 325kgs.
Draft without load: 2.5-3cm;
Draft with load of 150kgs: 15-20cm(safe);
Draft with load of 300kgs:35-40cm(load limit)

Anti Wind Wave:

1.The wave on water surface between 2-class and 3-class belongs to safe applicable range.
2.The wave on water surface between 3-class and 6-class can be applicable; however,the safety protection must be reinforced.
3.The wave on water surface between 6-class and 9-class is the restricted applicable range (it is suggested that the shipping shall not be parked and the visitors shall not be in or out).
Attention: to avoid shaking of the dock, the area of internal lake’s dock is not less than 30 square meter; the area of stage is not less than 100 square meter.

Anchoring:

1.If water is less than 3m in depth, steel piles are to be put in proper place and then connected by wheels, which can prevent the floating dock from moving laterally but can automatically rise and fall in line with water level.
2.If water is over 3m in depth, anchoring can be used by sinking the anchorage block pulled by steel cables to the water bottom.

Guarantee:

warranty on our floats are 3 years, that is within three years, if there is any damage caused by the product in normal condition, we will replace the floats for you.

Packing and shipping

Floating Dock , Floating Jet Ski Dock , Jet Ski Lift For Sale

Ningbo jiayi marine co., ltd is with a vision to fulfill the worldwide needs of floating projects, provide solutions for floating applications from residential to commerial needs, dedicated to providing the perfect quality products and best quality of services and after sale service.

Ningbo jiayi marine co. ,ltd Dock is your best choice for floating system,such as floating dock system, jet ski pontoon floaing bridge,floating platform,cage culture,swimming pool platform, floating house/tent, jet ski float and drive on dock.

Our Floating System products is the best product for leisure activities, sports and engineering programs regarding on water activities. We hereby sincerely recommend it to you and believe confidently that you will befully satisfied with its superior quality as well as its widely various usage.
